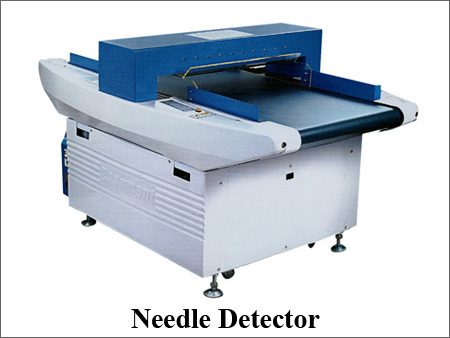

Needle Detector



Needle Detector

Product Code : 13

Product Specification
Needle Detector:
  • Designed to detect broken needles left in all kinds of clothes, underclothing, home furnishing items, shoes, carpets, bathrugs and toys etc.
  • Compact, conveyor belt operated, environment-protecting and electric saving design
  • Counter on the control panel indicates certified, undertified and their gross
  • 10 LED indicators on the bridge to indicate the exact position of metal object in the item being checked
  • Sensor controlled conveyor belt automatically begins to move when the operator stands in front and switches "off" it left unattended
  • In the event of broken needle or metal part being detected the machine automatically "beeps" and the conveyor returns the items being checked to the operator.
Model
HD-1200c
HD-650c-30
HD-680c
HD-650c
Detecting method
Magnetic Industion
Magnetic induction
Magnetic induction
Magnetic Induction
Detecting ability
1mm steel part
2.5 mm steel part
1mm steel part
1mm steel part
Detecting adjustment
Stepless adjustment
Stepless adjustment
Stepless adjustment
Stepless adjustment
Detecting width
1200mm
600mm
600mm
600mm
Detecting height
100mm
300mm
100mm
100mm
Alarm method
Buzzer and belt stops
Buzzer and belt stops Buzzer and belt stops Buzzer and belt stops
Belt speed
30m/min
30m/min 30m/min 30m/min
Power supply
250v, 50Hz, single phase
250v, 50Hz, single phase 250v, 50Hz, single phase 250v, 50Hz, single phase
Rated output
160w
110w
110w
110w
Dimension L x W x H
1650 x 1650 x 900mm
1650 x 1650 x 900mm 1650 x 1650 x 900mm 1650 x 1650 x 900mm
Weight
350kg approx.
230kg approx. 220kg approx. 190kg approx.
