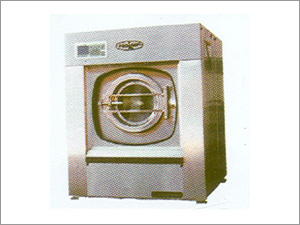

Washer Extractor
Washer Extractor
Product Code : 15
Brand Name : SUNRISE TECHNICAL SERVICES
Trade Information
- Minimum Order Quantity
- 1
- Unit of Measure
- Unit/Units
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Others
- Packaging Details
- Packing as per Requirement
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001:2008
Product Description
We are counted as the most advanced manufacturer and supplier of premium quality of Washer Extractor in this domain. With our years of experience, our assortment of extractor is well known for its safe operation, user friendly functions and low consumption of power. To ensure low vibration in higher floors, we incorporate latest world class suspension structure with buffer spring. Broadly used in industries as an extractor, these are offered at low market prices. Our stock of Washer Extractor is provided in compliance with quality parameters.
Further details
- Full stainless steel construction, inner andouter body made of high quality SS-304 grade
- Fully Automatic, feather touch, user frindly, programmable system to ensure highly safe and stable operations
- Incorporates the latest world class suspension structure with buffer springs to ensure low vibration even on higher floors
- Front loading type, open pocket drum and single door, make loading and unloading easer and reduces labour and time drastically
- Fully enclosed with rear drainage system for environmental protection
- The drum and case as well as outer body are made of high quality stainless steel for higher resistance to corrosion and longer durability.
- Auto balancing for two/three speed extractions.
- Auto chemical dousing through four independent chambers.
| Model | XGQ-200F | XGQ-100F | XGQ-50F | XGQ-25, 25FF | XGQ-15F |
| Rated capacity (dry loading) kg | 200 | 100 | 50 | 25 | 15 |
| Drum D x L mm | 1600x1100 | 1200x910 | 950x705 | 880x496 | 650x460 |
| Cylinder D x L mm | 1720x1230 | 1326x953 | 1054x762 | 954x540 | 710x533 |
| Washing/Distributing speed | 25/52 | 30/60 | 40/60 | 43/75 | 45/82 |
| Middle/High extrac speed rpm | 290/360, 470, 580, 560 | 325/650 | 375/750 | 430/810 | 440/920 |
| Work cycle min. | - | 45 | 45 | 45 | 45 |
| Motor Power kw | 30 | 11 | 5 | 4 | 2.2 |
| Electric heating kw | 45 | 22.5 | 15 | ||
| Steam pipe (DN) mm | 40 | 25 | 20 | 20 | 15 |
| Cool/hot water pipe (DN) mm | 50 | 40 | 25 | 25 | 20 |
| Water consumption of cycle kg | 2400 | 1500 | 750 | 400 | 300 |
| Steam consumption of cycle kg | 85 | 50 | 30 | 20 | 8 |
| Tap water pressure | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Steam Pressure | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Work pressure of compressed air | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Dimension (L x W x H) | 2550x2250x2240 | 1968x1680x1934 | 1410x1320x1700 | 1285x1150x1525 | 950x800x1300 |
| Machine Weight | 6500 | 3200 | 1600 | 1100 | 380 |
| Tilting angle of unloading | 15 | 18 | - | - | - |
